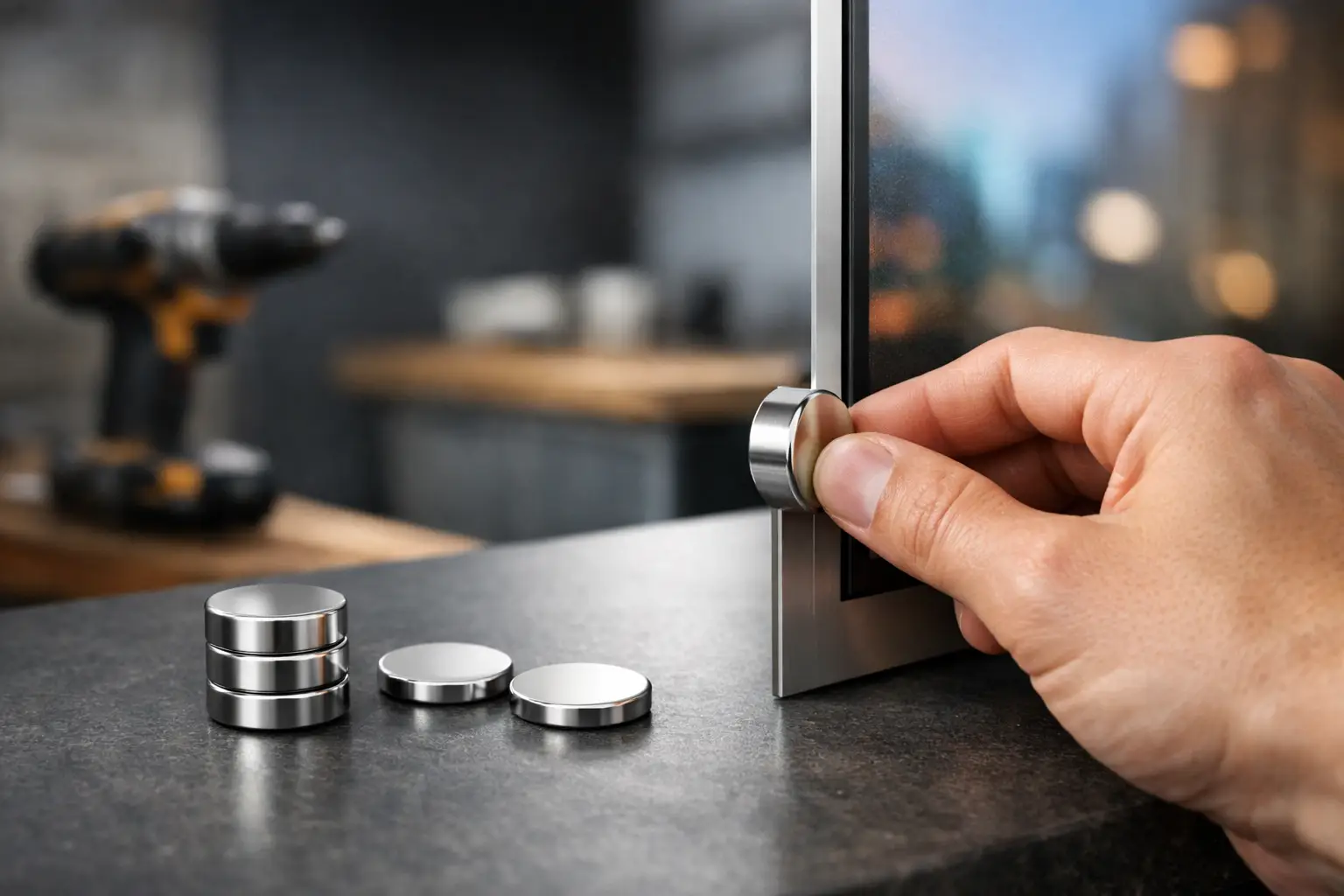

How to Secure Display Panels with Strong Magnets
A display panel that sits proud, rattles when a door closes, or drops when a customer handles it makes an otherwise good fit-out look unfinished. Knowing how to secure display panels properly means matching the magnet, fixing method and panel weight to the job – not simply choosing the strongest magnet available.
For removable signage, retail facings, access panels and cabinet displays, neodymium magnets create a clean, concealed fixing with fast access when it is needed. They can be exceptionally effective, but only when the panel has a flat mating surface, a sensible air gap and a secure mechanical fixing behind it.
Start with the panel, not the magnet
The panel material and its intended use determine the right arrangement. A lightweight acrylic price panel requires far less holding force than a timber-backed retail display board. A panel opened daily needs a different solution from one removed only during maintenance.
First, establish whether the panel is ferrous. Steel panels can attach directly to magnets, provided the steel is thick enough and the contact area is clean. Aluminium, acrylic, MDF, plywood and most composite boards are non-magnetic, so they need a steel strike plate, washer or a second magnet fitted to the opposing surface.
Also consider the direction of force. Pull strength is measured when a magnet is pulled straight away from a flat steel surface. Most display panels, however, place magnets under shear load, where the panel is trying to slide down the wall or frame. A magnet that appears extremely strong in a straight pull test can allow movement under shear, particularly on a smooth vertical surface. Use a locating lip, lower rail, pins or a discreet mechanical stop to carry the weight where possible. Let the magnets hold the panel closed and aligned rather than asking them to support everything alone.
Choose the best magnetic format
There is no single best magnet for every display build. The format should suit the available space and how the panel will be fixed.
Countersunk magnets for screwed fixings
Countersunk neodymium magnets are often the most straightforward option for timber frames, MDF displays and cabinet structures. Their centre hole allows a screw to sit flush, keeping the magnet face clear for full contact with the steel plate or mating magnet.
This makes them particularly useful where adhesive alone would be unreliable. Fix the magnet with a suitable screw into a sound substrate, taking care not to overtighten it. Neodymium magnets are hard but brittle; excessive screw pressure or a misaligned head can crack the magnet or chip its protective coating.
Disc magnets for shallow, concealed mounting
Disc magnets are a good choice when a shallow, tidy fixing is the priority. They can be recessed into a drilled pocket in timber, plastic or display board, leaving the surface flush. A steel disc or washer on the removable panel gives a simple, repeatable connection.
The recess must be accurate. If the magnet sits below the surface or is covered by thick filler, laminate or tape, the air gap reduces holding force quickly. A fraction of a millimetre matters with compact high-strength magnets.
Block magnets for greater contact area
Block magnets suit wider panels, timber frames and builds where a longer fixing area is useful. Their shape can resist rotation better than a small round magnet, especially when fitted into a routed channel. They are useful behind graphics panels and inspection covers where there is space to create a positive location.
For a panel that needs to sit square every time, use blocks in combination with a shallow recess or edge stop. Magnets pull surfaces together well, but they do not automatically correct a poorly aligned panel.
Magnetic catches for regular access
For lightweight doors, hinged display sections and removable cabinet faces, magnetic catches offer a practical packaged solution. They are designed to hold a panel shut while allowing it to be opened by hand. A catch is usually the better choice where the panel will be accessed frequently and a defined opening action matters more than maximum pull strength.
How to secure display panels with the right holding force
The strongest available magnet is not automatically the safest or most convenient answer. Excessive force can make a thin acrylic panel awkward to remove, pull a strike plate loose or create a pinch hazard for fingers. Too little force leads to chatter, poor alignment and a panel that can be lifted away too easily.
Work from the real installation conditions. Consider panel weight, size, how far it projects from the supporting frame, how often it will be removed, and whether people may knock or pull it. A large panel creates leverage at its outer edge, so magnets near the corners and along the top may need support from lower locating points.
As a practical rule, spread the holding points rather than relying on one very powerful magnet in the centre. Four well-positioned magnets generally hold a panel flatter and more predictably than one oversized magnet. For long panels, add fixing points at sensible intervals to prevent bowing and gaps.
Do not treat a stated pull rating as the working load for your installation. Published pull strength is normally achieved in ideal conditions: direct contact, thick clean steel and a straight pull. Paint, powder coating, vinyl, timber veneers and imperfect alignment all reduce performance. Build in a generous margin, then test the finished panel in its actual position.
Fit the magnets accurately
Good installation is mainly about keeping the magnetic faces close, flat and aligned. Mark every position before drilling or bonding, then dry-fit the panel to check edge gaps and opening clearance.
When using a magnet and steel plate, ensure the plate is large enough to give the magnet a proper target. A small washer can work for a small disc magnet, but it may not provide the full holding force of a larger steel strike plate. Avoid thin, flexible steel where a rigid plate can be used, as flexing may make the panel feel loose.
For recessed magnets, drill or route pockets slowly and check the depth often. The magnet should sit flush with the finished surface, not buried beneath it. If the panel has a decorative face, allow for the thickness of any laminate, paint or covering before setting the recess depth.
Adhesive can be useful for bonding magnets into accurately cut recesses, but it should not compensate for poor preparation. Degrease both surfaces, use an adhesive suitable for the materials and give it the full cure time. For public-facing panels, heavy boards or frequently handled displays, a screwed countersunk magnet or another mechanical retention method is the more dependable option.
Get polarity right before final fixing
Where magnets face magnets, polarity matters. Opposite poles attract; matching poles repel. It is easy to install one magnet the wrong way round and discover that the panel will not close after the adhesive has cured.
Before fixing anything permanently, stack and mark each magnet. Keep one face marked as the reference face, then place every mating magnet against it to confirm attraction. Check the full layout while the panel is dry-fitted, particularly if several magnets are used.
Strong N52 neodymium magnets can snap together unexpectedly. Keep fingers clear, separate magnets with card or timber spacers during layout, and take care around brittle acrylic, glass and finished surfaces. Their superior pull performance is the benefit, but it also calls for controlled handling.
Add safeguards where the installation demands them
Magnets are excellent concealed retainers, not a substitute for rated structural fixings. If a display panel is overhead, unusually heavy, installed in a public area, exposed to vibration, or capable of causing injury if it falls, include positive mechanical support. This may be a concealed bracket, safety tether, retaining screw, lower rail or locking catch.
For retail environments, also think about tampering. A panel that is easy for staff to remove may be equally easy for a customer to lift. A small hidden screw, security fastener or tool-operated release can preserve the clean magnetic appearance while preventing unauthorised removal.
Temperature and moisture deserve attention too. Standard neodymium magnets are well suited to many indoor display applications, but damp locations, chipped coatings and prolonged heat can shorten service life or reduce magnetic performance. Use an appropriate finish, keep magnets dry where possible and avoid placing them close to significant heat sources.
A well-secured display panel should look effortless: flat to the frame, easy for authorised users to remove and firm enough to stay put under normal use. Choose powerful, versatile magnets for the holding job, then give the panel a proper location and support so the finished installation remains reliable long after fitting day.
