A cabinet door that sits proud by a few millimetres, a display panel that slips when knocked, or a removable cover with visible fixings can spoil an otherwise tidy job. This countersunk neodymium magnets review looks at why these compact, super-strong magnets are often the cleaner answer – and where their limits need to be respected.

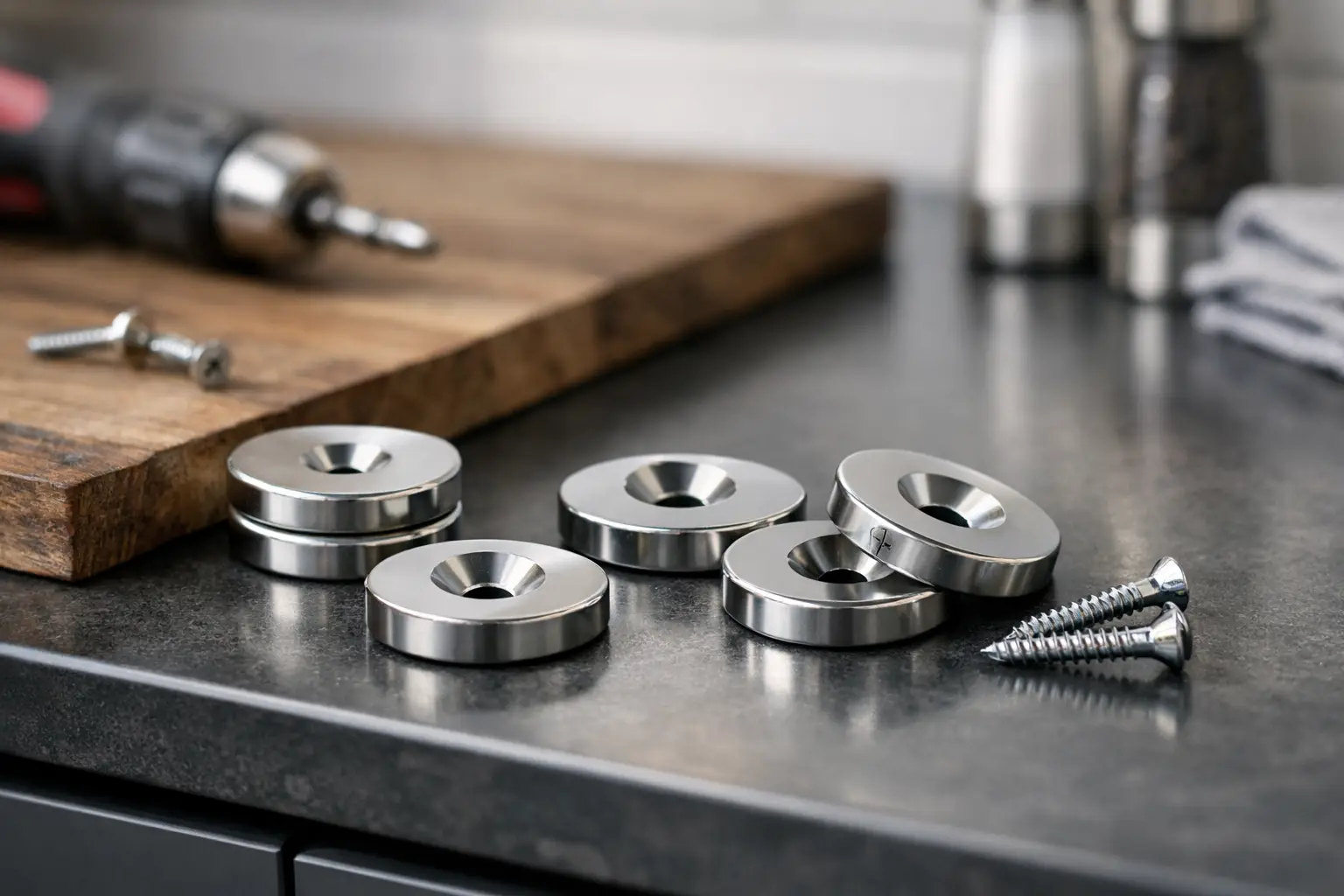

Countersunk magnets combine powerful neodymium pull with a recessed mounting hole. A suitable screw sits flush with the magnet face, allowing the active surface to meet a steel plate or a matching magnet with minimal gap. For cabinet makers, fit-out teams and capable DIY users, that can mean a secure closure or removable fixing without bulky catches, hooks or brackets.

What countersunk magnets do better

A standard disc magnet is excellent when it can be bonded into a recess. A countersunk neodymium magnet is the better choice when the part needs to be screwed in place, removed later or installed on a surface where adhesive is not dependable. Timber movement, dusty workshop conditions, painted finishes and repeated loading can all test a glued joint. A screw gives the installation a mechanical fixing from the outset.

The flush finish is the main practical advantage. With the screw head below or level with the magnet face, there is no proud metal stopping the magnet from making close contact. That matters because neodymium magnets lose effective holding power quickly as the air gap increases. Even a thin screw head, layer of paint, laminate or misalignment can make a noticeable difference.

They are particularly useful for cupboard and wardrobe doors, access panels, retail signage, tool holders, removable timber trims and lightweight covers. They can also replace some conventional magnetic catches where a more discreet, tailored installation is wanted. The result is a powerful and versatile fixing that occupies very little room.

Countersunk neodymium magnets review: strength in use

The first impression of a quality countersunk neodymium magnet is usually its pull. N52 neodymium material offers superior pull performance for its size, making it possible to create a strong closure with a magnet that is far smaller than a ferrite alternative. That compact strength is the reason these magnets suit space-conscious projects.

However, quoted pull force is not the same as guaranteed holding power in every fitting. Published figures are commonly measured with direct contact against a clean, thick steel surface and a straight pull-away force. A real installation may involve painted steel, thin sheet, a small offset, vibration or a load trying to slide downwards. Each condition reduces what the magnet can usefully hold.

For a cupboard door, this is rarely a problem if the magnet is correctly sized and the strike plate is positioned squarely. For a vertically loaded panel, it is a different calculation. Magnets are strongest when pulled straight apart, not when resisting shear. If a panel has weight, add a lip, rail, locating pins or another mechanical feature to carry the load. Let the magnets hold the panel closed rather than asking them to act as the only structural support.

The steel plate versus magnet-to-magnet choice

A steel strike plate is simple, cost-effective and forgiving. It is often the sensible option for doors, access hatches and closures, especially when only one component needs magnetic hardware. Choose a flat ferrous plate with enough area for the magnet to work against, and avoid very thin steel where possible.

Magnet-to-magnet fixing gives a stronger, more positive connection when the poles are aligned correctly. It suits removable covers and items that need a precise closing point. The trade-off is installation accuracy. If the magnets are fitted with like poles facing one another, they will repel. Check polarity before drilling or fixing, then keep paired magnets clearly marked throughout the job.

Fit matters as much as grade

The most common installation mistake is choosing a magnet by diameter alone. The countersunk hole must suit the screw head, and the screw length must suit the material behind it. A head that sits above the magnet face creates a gap. A screw that is too long can break through a cabinet side or distort a thin panel.

Check three dimensions before ordering: magnet diameter, magnet thickness and the diameter and angle of the countersink. The screw must sit properly within the recess without forcing the brittle magnet. If you are fitting into softwood, hardwood, MDF or plywood, use a suitable pilot hole and tighten by hand rather than driving the screw aggressively.

Countersunk neodymium magnets are hard but not tough in the way steel hardware is tough. They can chip, crack or split if dropped onto one another, overtightened or snapped against a steel surface. Their nickel coating provides a neat finish and everyday corrosion resistance, but damage to that coating can expose the magnet beneath. Treat them as precision components, not as ordinary washers.

A small amount of care during fitting pays back in a cleaner result. Offer the magnet up, mark the position, drill a controlled pilot hole and bring the screw down until it is seated. If the screw feels tight before the head is flush, stop and check the hole rather than applying more torque.

Where they offer the best value

Countersunk magnets earn their place where appearance, repeat use and holding force matter together. They are especially effective on fitted furniture and joinery because the hardware is almost hidden once the door or panel is closed. A magnetic catch may be quicker to install, but a countersunk magnet and plate can look neater and take up less depth.

They are also a practical option for retail units and exhibition displays. Panels can be removed for access, changed without visible clips, and returned to the same position when simple locating features are included. In workshops, they are useful for lightweight jigs, tool storage and removable guards, provided the application does not create a safety risk if a component comes loose.

For outdoor, wet or permanently damp locations, take a more cautious view. A nickel-plated neodymium magnet may be fine for protected occasional use, but exposed installations need material and sealing choices suited to the environment. Similarly, a powerful magnet is not automatically the right answer for a heavy gate, high-traffic door or load-bearing fixture. Mechanical catches, hinges and latches still have their place.

Choosing the right size without overbuying

Bigger is not always better. An oversized magnet can make a small cabinet door awkward to open, place excessive stress on the fixing when it closes, or cause thin materials to flex. A magnet that is too small, on the other hand, can feel inconsistent once paint thickness and normal alignment tolerances are added.

Start with the job rather than the maximum advertised pull. Consider the size and weight of the moving part, the available mounting depth, the opening force you want, and whether there will be paint, tape, veneer or a gap between the faces. For a light door, a modest pair may be enough. For a larger access panel, using two or more magnets spread across the edge is often better than relying on one very powerful point.

A focused specialist range such as Magman’s makes this choice clearer: compare format, diameter, thickness and fixing style against the actual installation, not against a novelty strength test. Ordering a few options for a prototype can also be more economical than refitting a finished unit after the fact.

Sensible handling on site

Keep individual magnets apart until they are ready to fit. Larger neodymium magnets can pinch fingers sharply when they attract, and chips can fly if two magnets collide. Keep them away from mobile phones, bank cards, pacemakers and sensitive electronic equipment. Children should never handle small powerful magnets unsupervised, as swallowed magnets require urgent medical attention.

For the cleanest result, use countersunk neodymium magnets where their strengths count: a flush screw fixing, close contact and reliable pull in a compact space. Build in alignment and load support first, then let the magnet provide the satisfying, positive close that makes the finished job feel properly made.
